Remote Access

SSH Protocol Overview

SSH (Secure Shell) provides secure remote access to Port systems for administration and monitoring.

SSH Client Setup

PuTTY Installation

PuTTY is a free, open-source terminal emulator supporting SSH, Telnet, and other network protocols.

Download PuTTY

Download PuTTY Application

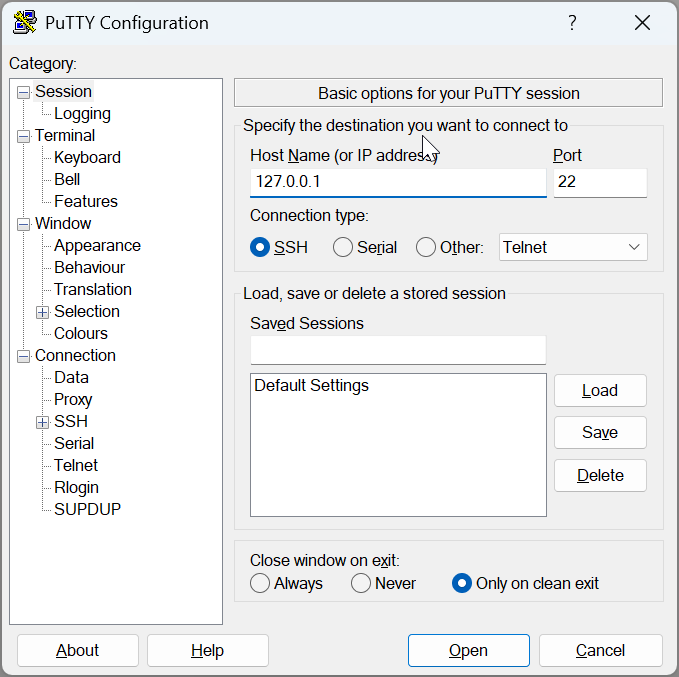

SSH Connection Process

1. Connection Configuration

Connection Details: - Host: 127.0.0.1 - Port: 22 - Protocol: SSH

Default Credentials

• Username: admin
• Password: admin

2. Authentication

Enter your credentials when prompted to establish the secure connection.

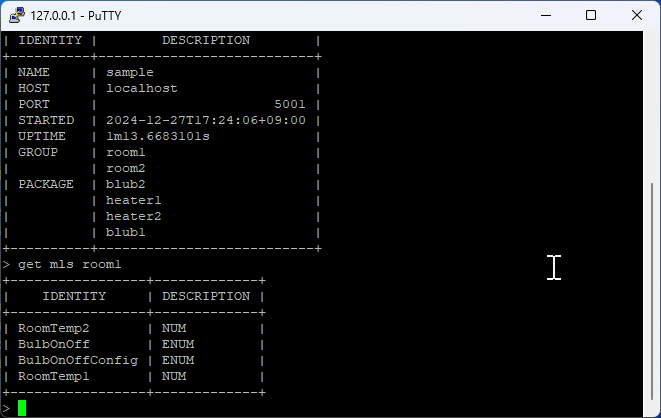

3. Command Execution

Once connected, you can execute various Port commands remotely: - View system status - Access log files - Monitor project operations - Perform administrative tasks

Remote Command Examples

Basic System Commands

# Check server status
status

# Get server uptime
uptime

# Measure network latency
latency

Data Access Commands

# Get data from server
get Equipment Status
get SECS Temperature
get MyProject.log

# Set data on server
set Equipment Status RUNNING
set SECS CommState ENABLED
set Process Temperature 150.5

Log Access Commands

# Access project logs
get sample.log
get MyProject.log

# Access package logs
get SECS.log
get GEM.log

# Access system events
get SECS.event
get GEM.event

Administrative Commands

# User management
set password admin oldpass newpass123
set grant operator 2

# System notifications
set notify "Process completed successfully"

# Package operations
set init SECS
set init GEM

SSH Security Best Practices

Connection Security

1. Change Default Credentials: Always change default username/password
2. Use Strong Passwords: Implement complex password policies
3. Enable Key-based Authentication: Use SSH keys instead of passwords when possible
4. Limit Access: Restrict SSH access to authorized users only

Network Security

1. Firewall Configuration: Configure firewall rules for SSH access
2. Port Configuration: Consider changing default SSH port (22)
3. IP Whitelisting: Restrict access to specific IP addresses
4. VPN Integration: Use VPN for additional security layer

Session Management

1. Session Timeout: Configure automatic session timeout
2. Connection Monitoring: Monitor active SSH connections
3. Audit Logging: Enable comprehensive SSH audit logging
4. Failed Login Protection: Implement failed login attempt protection

Troubleshooting SSH Connections

Common Connection Issues

Connection Refused

# Check if SSH service is running
get status

# Verify port configuration
get config ssh_port

Authentication Failures

# Verify user credentials
get user admin

# Check authentication logs
get auth.log

Network Connectivity

# Test network connectivity
ping 127.0.0.1

# Check firewall status
get firewall status

Error Resolution

Error	Cause	Solution
Connection timeout	Network/firewall issue	Check network connectivity and firewall rules
Authentication failed	Wrong credentials	Verify username/password
Permission denied	User access restrictions	Check user permissions and access rights
Host key verification failed	SSH key mismatch	Update or remove old host keys

Advanced SSH Features

SSH Tunneling

Create secure tunnels for accessing internal services:

# Local port forwarding
ssh -L 8080:localhost:5001 admin@127.0.0.1

# Remote port forwarding
ssh -R 9090:localhost:5001 admin@127.0.0.1

SSH File Transfer

Transfer files securely using SSH protocols:

# Using SCP (Secure Copy)
scp file.txt admin@127.0.0.1:/remote/path/

# Using SFTP (SSH File Transfer Protocol)
sftp admin@127.0.0.1

SSH Key Management

Generate and manage SSH keys for enhanced security:

# Generate SSH key pair
ssh-keygen -t rsa -b 4096

# Copy public key to server
ssh-copy-id admin@127.0.0.1

Integration with Port Applications

Remote Monitoring

Monitor Port applications remotely through SSH:

# Monitor system resources
get system resources

# Check application health
get health status

# View real-time logs
get logs --follow

Remote Configuration

Configure Port applications remotely:

# Update configuration
set config parameter value

# Restart services
set service restart

# Deploy updates
set deploy package_name

Remote Debugging

Debug Port applications remotely:

# Enable debug mode
set debug enabled

# View debug logs
get debug.log

# Set breakpoints
set breakpoint function_name
